Stop Trigger Setup


Specify the stop condition for acquisition in Stop Trigger Setup page.
If "Infinity" is selected for "Sampling Times" in Sampling Setup, set the acquisition stop condition on this page.

Click the "Next" button when you have finished setting all items and want to use the wizard to make Data Storage Setup.

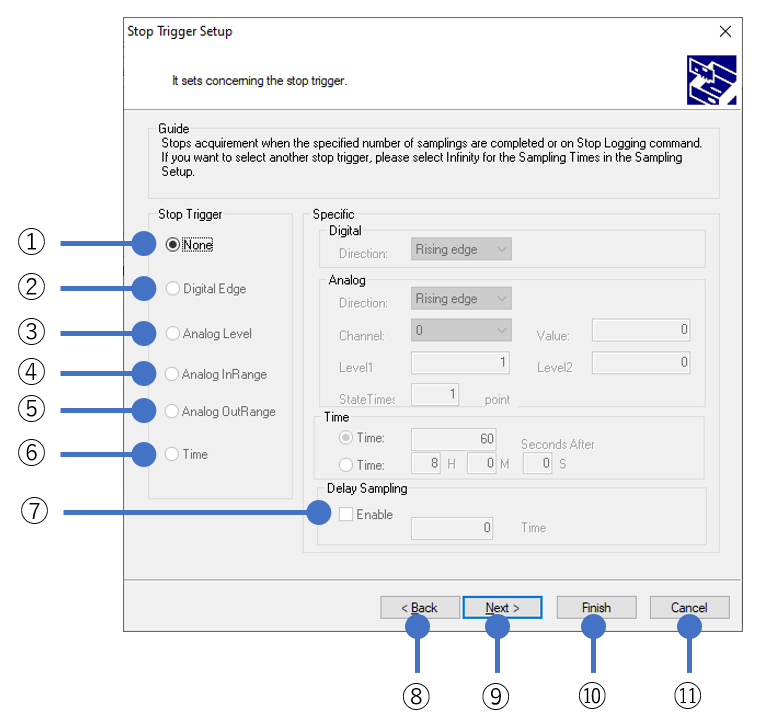

Appearance



Details

Item

Description

①None

If the "Sampling Times" is "Number of times", acquisition will stop when the set number of samplings is completed or the Stop Logging command is executed.

If the "Sampling Times" is "Infinity", acquisition will be performed until the Stop Logging command is executed.

②Digital Edge

Acquisition is started by the external trigger input of the device.

Select the rising edge or falling edge as the trigger input direction.



③Analog Level

Starts acquisition while the value of analog signal connected to specified channel Level Trigger became the specified value.

Specify the channel, the level and direction.



④Analog In Range

In Range Comparison Stop condition monitors the analog signal of the specified channel.

The condition is satisfied when the analog signal of the specified channel is within the range of level 1 and level 2 and the Sampling State Times time elapses.

If the analog signal of the specified channel goes out of range before the Sampling State Times time elapses, the Sampling State Times is reset.



⑤Analog Out Range

Out Range Comparison Stop condition monitors the analog signal of the specified channel.

The condition is satisfied when the analog signal of the specified channel is out of the range of level 1 and level 2 and the Sampling State Times time elapses.

If the analog signal of the specified channel falls within the range before the Sampling State Times time elapses, the Sampling State Times is reset.



⑥Time

Use one of the following settings to start acquisition from the specified time.

Settings

Description

Time

Stops acquisition when the specified time elapses after acquisition starts.

Specify the time in Second unit.

Time (H-M-S)

Stops acquisition at the specified time after acquisition starts.



⑦Delay Sampling

Delay Sampling is sampling performed after the sampling stop condition is satisfied.

If the number of delayed samplings is 0, sampling ends when the sampling stop condition is satisfied.

Press Stop Collection When the sampling stop conditions other than forced stop by pressing [Stop logging] or Time stop are satisfied, sampling is performed for the number of Delay Sampling.



⑧Back Button

Proceed to the previous wizard screen.(Start Trigger Setup)

⑧Next Button

Proceed to the next wizard screen. (Data Storage Setup)

⑩Finish Button

All subsequent wizard settings are the default values.

⑪Cancel Button

Cancels the wizard setup. All wizard settings are discarded.
