Data Storage Setup


In Data Storage Setup page, perform settings for saving acquired data automatically and whether send data to Excel.

Click the "Next" button when you have finished setting all items and want to use the wizard to make Finish Logging Wizard.

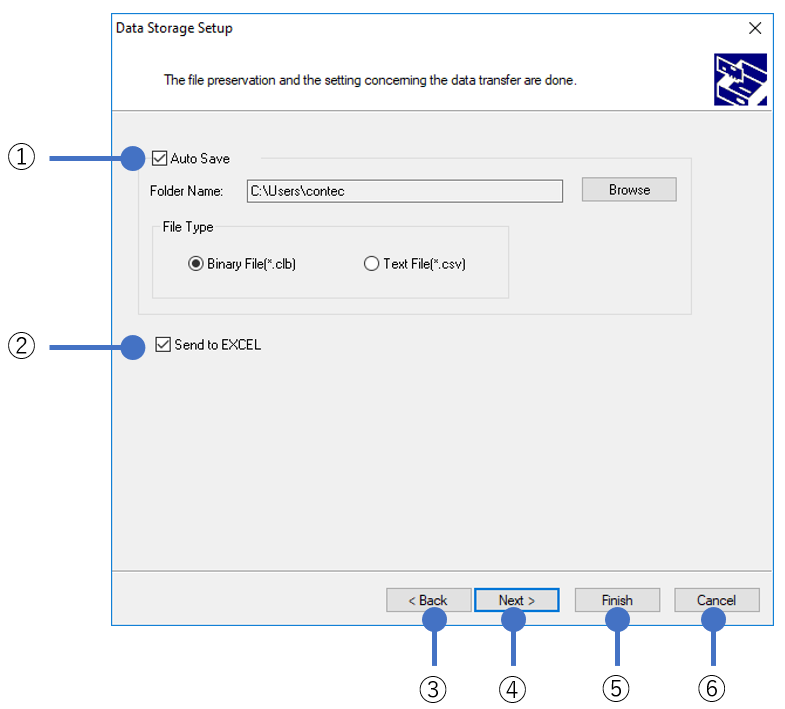

Appearance



Details

Item

Description

①Auto Save

Check here to automatically save the collected data to a file.

Specify the location to save the file using the browse button, and select the data format from binary or text.

There are two timings to save collected data: "After data acquisition" and "During data acquisition".
Please refer the following table to know more details.

②Send to EXCEL

Check this check box to send data to Excel during acquisition.

When the value whose Sampling Clock Period is more low-speed than 1 millisecond is specified, sending to EXCEL can be set.

③Back Button

Proceed to the previous wizard screen.(Stop Trigger Setup)

④Next Button

Proceed to the next wizard screen. (Finish Logging Wizard)

⑤Finish Button

All subsequent wizard settings are the default values.

⑥Cancel Button

Cancels the wizard setup. All wizard settings are discarded.



Timings to save collected data (Details)

Type of Timing

Description

Auto save after data acquisition

Saved when data acquisition is complete.

In this case, the file name is automatically created based on the time when data acquisition completed.

Example) When data acquisition starts at 2:05:10:00 pm on March 1, 2020, and is completed 10 seconds later
 The file name will be “20200301_1405200” based on the time of completion “2:05:20:00 pm”.

Auto save during data acquisition

When collecting data for a long period of time, the collected data of the memory size set in the memory option ("View"-"Memory Option" in the menu bar) is divided and saved when the collected data has accumulated.

In this case, the file name is automatically created based on the time when data acquisition started.

Example) When data acquisition starts at 2:05:10:00 pm on March 1, 2020, and data for the memory size is accumulated and saved 10 seconds later
 The file name will be "20200301_1405100" based on the start time "2:05:10:00 pm". Also, the file name saved again 10 seconds later will be "20200301_1405200".
