Start Trigger Setup


Specify the start condition for acquisition in Start Trigger Setup page.

Click the "Next" button when you have finished setting all items and want to use the wizard to make Stop Trigger Setup.

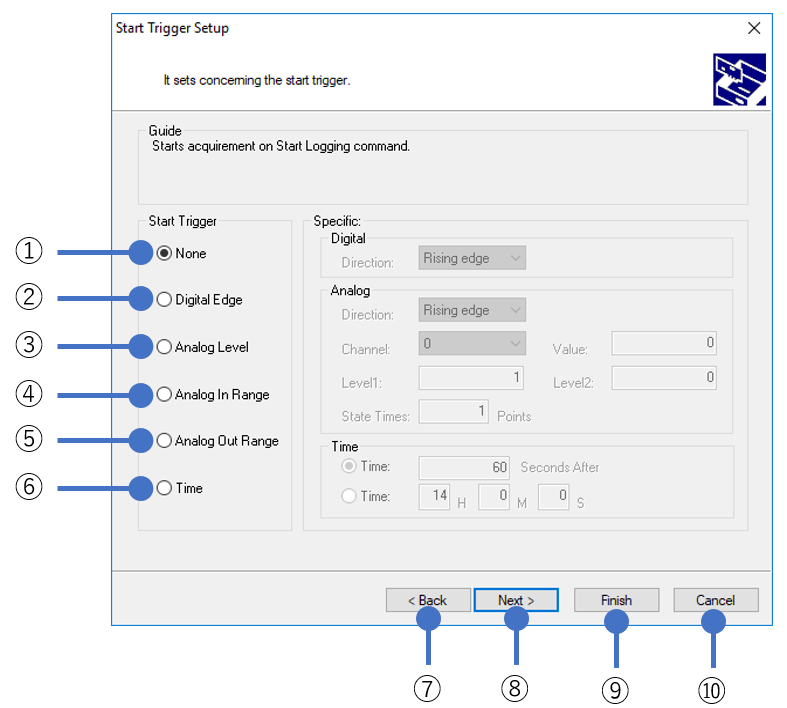

Appearance

Details

Item

Description

①None

Performs acquisition immediately on Start Logging command.

②Digital Edge

Acquisition is started by the external trigger input of the device.

Select the rising edge or falling edge as the trigger input direction.

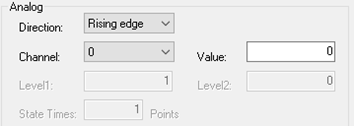

③Analog Level

Starts acquisition while the value of analog signal connected to specified channel Level Trigger became the specified value.

Specify the channel, the level and direction.

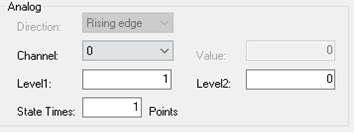

④Analog In Range

In Range Comparison Start condition monitors the analog signal of the specified channel.

The condition is satisfied when the analog signal of the specified channel is within the range of level 1 and level 2 and the Sampling State Times time elapses.

If the analog signal of the specified channel goes out of range before the Sampling State Times time elapses, the Sampling State Times is reset.

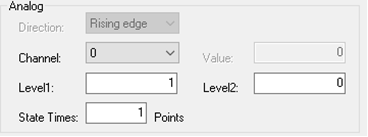

⑤Analog Out Range

Out Range Comparison Start condition monitors the analog signal of the specified channel.

The condition is satisfied when the analog signal of the specified channel is out of the range of level 1 and level 2 and the Sampling State Times time elapses.

If the analog signal of the specified channel falls within the range before the Sampling State Times time elapses, the Sampling State Times is reset.



⑥Time

Acquisition uses one of the following settings to start acquisition from the specified time.

Settings

Description

Time

Starts acquisition when the specified time passed after Start Logging command is executed.

Specify the time in Second unit.

Time (H-M-S)

After Start Logging command is executed, acquisition starts at the specified time.



⑦Back Button

Proceed to the previous wizard screen.(Sampling Setup)

⑧Next Button

Proceed to the next wizard screen. (Stop Trigger Setup)

⑨Finish Button

All subsequent wizard settings are the default values.

⑩Cancel Button

Cancels the wizard setup. All wizard settings are discarded.
