Returns the option settings related to the YT window and memory to the default settings.
Please execute the "Save Option" command when you want to load the default values the next time you start C-LOGGER.
Operation |
Description |
Menu |
[View] - [Reset Option] |
Tool Bar |
(N/A) |
Shortcut Key |
(N/A) |

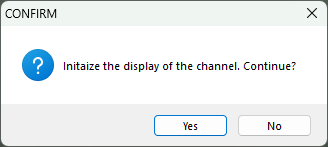

When the command is executed, a confirmation message "Initialize the display of the channel. Continue?" is displayed.
The Yes button also resets the "YT
Window Option - Channel" setting.
The No button does not reset the "YT
Window Option - Channel" setting.
The following items are always reset.
YT
Window Option - Overview
YT Window Option - Detail
Memory Option
Major Item |
Minor Item | Item | Default |
YT Window Option |
Channel |
Line Color - Channel 0 |
Blue |
Display Dot - Channel 0 |
No |
||
Line Color - Channel 1 |
Red |
||
Display Dot - Channel 1 |
No |
||
Line Color - Channel 2 |
Green |
||
Display Dot - Channel 2 |
No |
||
Line Color - Channel 3 |
Light blue |
||
Display Dot - Channel 3 |
No |
||
Line Color - Channel 4 |
Nile Green |
||
Display Dot - Channel 4 |
No |
||
Line Color - Channel 5 |
Gray |
||
Display Dot - Channel 5 |
No |
||
Line Color - Channel 6 |
Teal blue |
||
Display Dot - Channel 6 |
No |
||
Line Color - Channel 7 |
Golden yellow |
||
Display Dot - Channel 7 |
No |
||
Overview |
Background Color |
Black |
|
String Color |
White |
||
Graph Title |
Enable |
||
T Axis Title |
Enable |
||
Y Axis Title |
Enable |
||
Display Channel Name |
Enable |
||
Use 2-Spit Window |
Enable |
||
Display Y magnification |
Enable |
||
Detail |
Graph Background Color |
Gray |
|
Graph Grid Color |
Gray |
||
Cursor Color |
Red |
||
Scope Color |
Black |
||
Decimal Place |
1 |
||
Memory Option |
Memory Option |
- |
10 |
