YT Window Option - Channel

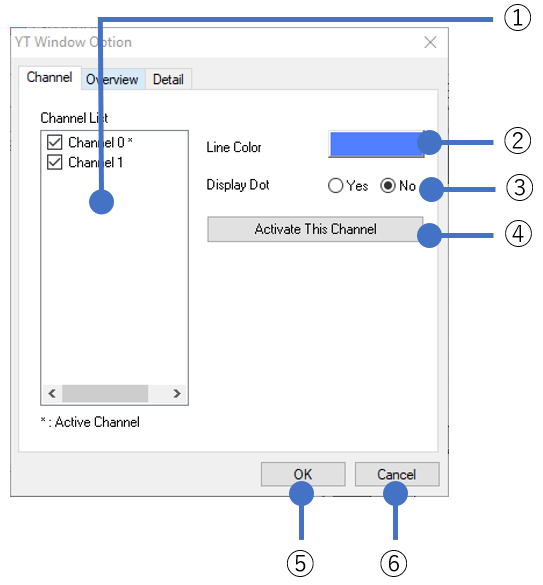

In the YT Window Options dialog box, select the Channels tab.



Appearance

Details

Item

Description

①Channel List

Show the list of channels to use in acquisition.

By checking/un-checking the check box, the channel will be displayed in YT Window or not.

②Line Color

Modify the line color to draw graph.

③Display Dot Settings

While Display Dot is enabled, dots will be displayed at sampling location of acquired data.

Display Dot Enabled

Display Dot Disabled

④Display Dot Disabled

The selected channel in list is activated by clicking this button.

⑤OK button

Applies the "YT Window Option" settings and closes the dialog box.

⑥Cancel button

Discards all "YT Window Options" settings and closes the dialog box.
