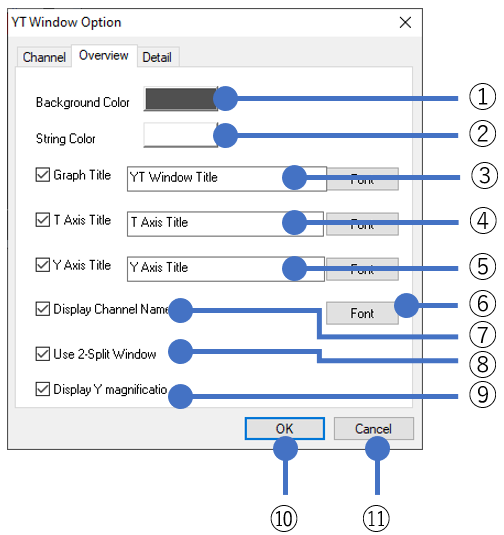

YT Window Option - Overview


In the YT Window Options dialog box, select the Overview tab.



Appearance



Details

Item

Description

①Background Color

Specify background color outside of graph of YT Window.

②String Color

Specify color used in Graph Title, T Axis Title, Y Axis Title and Channel Name.

③String Font

Set the font used for the Graph Title, T Axis Title, Y Axis Title, and Channel Name, respectively.

④Graph Title

Specify whether display title of graph and its string.

⑤T Axis Title

Specify whether display title of T-axis and its string.

⑥Y Axis Title

Specify whether display title of Y-axis and its string.

⑦Display Channel Name

Shows/hides the channel name label.

⑧Use 2-Split Window

Specify whether display 2 screens (Whole Screen and Zoom Screen) for graph or Zoom Screen only.

⑨Display Y magnification

Shows/hides the Y-axis magnification.

⑩OK button

Applies the "YT Window Option" settings and closes the dialog box.

⑪Cancel button

Discards all "YT Window Options" settings and closes the dialog box.
