Property Viewer State


When File Viewer Icon is selected in the file viewer, Number of Data, Start Time, and End Time in Property Viewer are updated.

When acquisition starts, these values are updated periodically.

The Start Time property shows the time when data acquisition started.
When using the Start Trigger, the trigger start time is displayed.

The End Time property shows the data acquisition end time.



Appearance

The appearance of Property Viewer changes depending on the item selected in File Viewer.
For details on Property Viewer, see [Screen configuration] - [Property Viewer] topic.

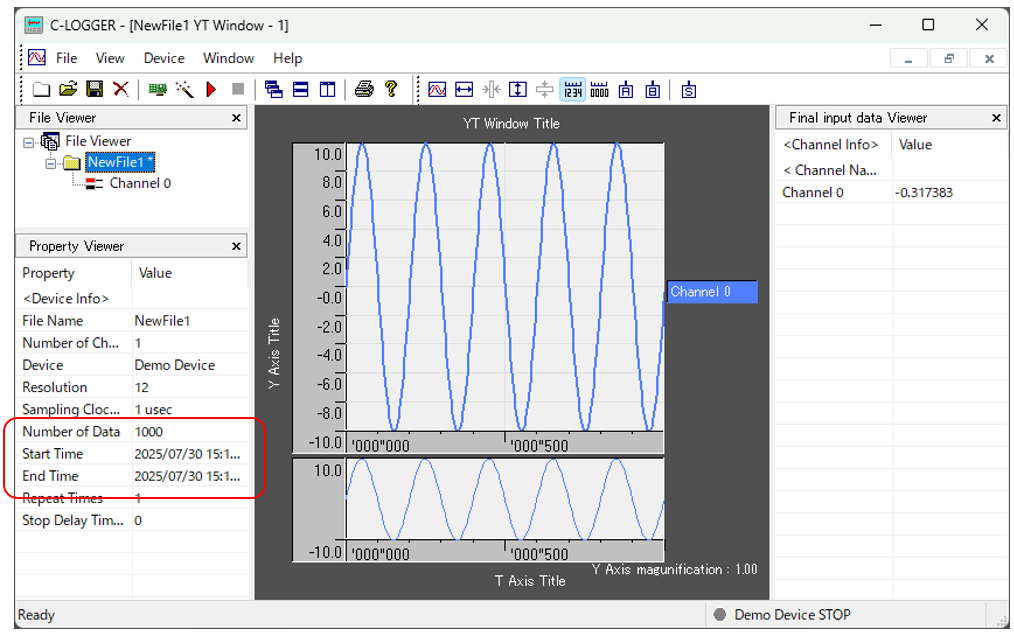

Below, when a file icon is selected in the File Viewer (NewFile1)
