File Viewer


File Viewer is the window for managing acquired data.
The acquired data loaded from file and new file created with Logging Wizard are shown in File Viewer as a tree-view.

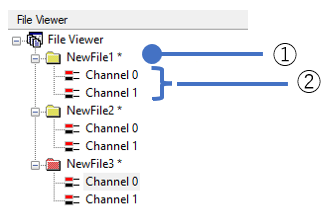

① File-tree

The acquired data loaded from file is shown as file-tree.

Plural files can be loaded in C-LOGGER.
If there is a star mark (*) behind file-tree, it means that the file is not be saved or contents of the file are modified.

File-tree has 3 states as follows and the color of icon changes with state.

File Icon

Description

Before acquisition

During acquisition

After acquisition



②Channel-tree

The channels used in acquisition are shown as channel-tree.

The string shown here is the name of device channel.
The channel name is decided in Logging Wizard and it can be modified in File Viewer.

While the channel name is clicked which you want to modify, it can be modified as follows by clicking on again.



▪ Popup Menu

A popup Menu is shown on right-click in File Viewer.
In this menu, there are several commands relevant to File Viewer.

Command

Description

New YT Window

Starts YT Window for selected file.

Save

Replaces the existing data acquisition file.

Save As...

Saves acquired data to file with new file name.

Close

Closes the file selected in File Viewer.
