Confirm and Change COM Port (Media Converter)

When a device (hardware) is installed on a computer, a COM port is automatically assigned. (COM1, COM2, etc.)
General-purpose package software (application software) uses this COM port to perform serial communication.



Confirm COM port

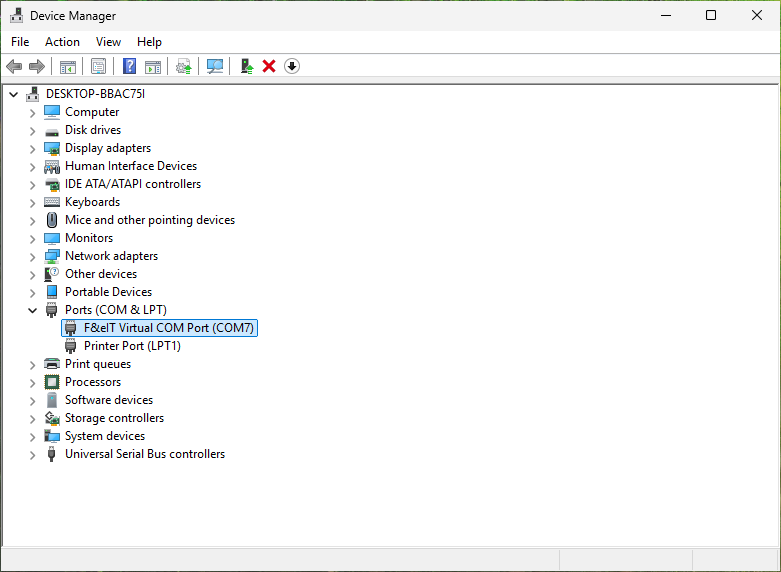

1. Start the Device Manager.

2. Confirm if the added COM port is displayed in the [Ports (COM & LPT)] folder.

　Depending on the environment, COM ports may not be assigned sequentially starting from CH1 on the device.
　Therefore, check which CH number on the device corresponds to which COM port, and then specify the COM port on the general-purpose package software.

　



Change COM port

You can also change the COM port number from Device Manager.

1. Display the properties of the device you want to change in the [Ports (COM & LPT)] folder.

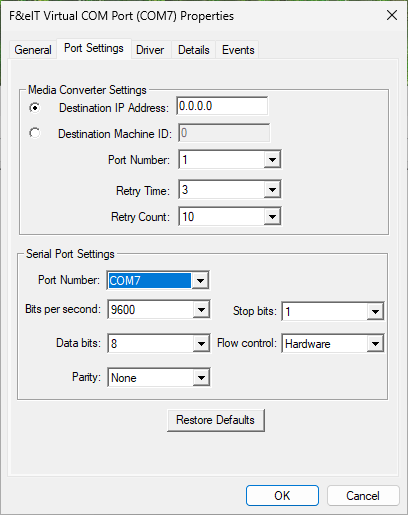

2. In the Properties window, Select [Port Settings] tab.

　You can change the COM port number in the [Port Number:] combo box in the [Serial Port Settings] frame.
　Configure the settings as required and select [OK].
　

3．Restart the virtual COM server.
　　The settings in the "Port Settings" tab will not be reflected unless you restart the virtual COM server.



Settings in the [Port Settings] tab

Frame Name

Project Name

Contents

Media Converter Settings

IP address:

Set the IP address of the media converter you want to access.
Set the IP address "0.0.0.0" to disable the corresponding COM port.
When you set "Machine ID", IP address cannot be set.

Machine ID:

Set Machine ID to access.
When you set "IP address", Machine ID cannot be set.

Port Number:

Set the Port number to access.
You can confirm the extended serial by this value. The port number of media converter itself is "1".

Retry Time:

Specifies the interval time of resending data when no response from media converter.
Set the retry time of sending data from Virtual COM Server to media converter in second.

Please note that this retry time is different from that one set in media converter.

Retry Count:

Specifies the resend times when no response from media converter.
Set the retry times of sending data from Virtual COM Server to media converter.
Please set the value to [resend-times + 1]. If "1" is set, do not resend.

Please note that this retry count is different from that one set in media converter.

Serial Port Settings

Port Number:

Specifies the COM port number. COM1 to COM256 can be specified.

Bits per second:

Serial communication parameters.
Specify the default value for each parameter.

Each parameter can be changed using the standard Windows communication Win32API.

Data bits:

Parity:

Stop bits:

Flow control:
