Logical Operation

Performs a logical operation on the channels selected from the signal name tree.

■　Operation procedure

Select the target channels from the signal name window and select the operation you want to perform from the following.

[AND]

Route

Operation

Menu

[Tools(T)]－[Logic Operation]－[AND]

Toolbar

[OR]

Route

Operation

Menu

[Tools(T)]－[Logic Operation]－[OR]

Toolbar

[XOR]

Route

Operation

Menu

[Tools(T)]－[Logic Operation]－[XOR]

Toolbar

[NOT]

Route

Operation

Menu

[Tools(T)]－[Logic Operation]－[NOT]

Toolbar

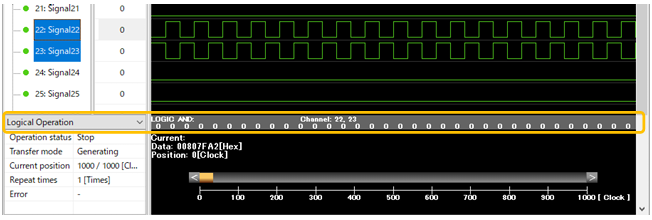

The calculation result is displayed in the calculation result item of the work graph.
