Operation
Description
Menu
[Device]-[Select]
Tool Bar
Shortcut Key
[Alt] + [D] , Then, [Alt] + [S]
Select device to use for data acquisition.
In Select Device dialogue, the signal on each channel of device can
be monitored simply.
Click OK button to decide device to be used.
Operation |
Description |
Menu |
[Device]-[Select] |
Tool Bar |
|
Shortcut Key |
[Alt] + [D] , Then, [Alt] + [S] |
Item |
Desciption |

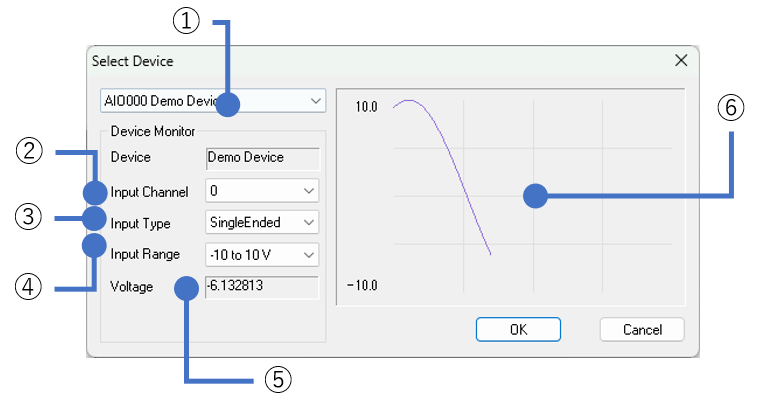

①Select Device |
Select device to use for data acquisition. |
②Select Channel |
Select channel to monitor. This selection will not be used for data acquisition. (*1) |
③Select Input Type |
Select input type to monitor. This selection will not be used for data acquisition. (*1) |
④Select Range |
Select input range to monitor. This selection will not be used for data acquisition. (*1) |
⑤Voltage Display |
Displays the value of signal connected to specified channel. |
⑥Graph Display |
Displays the signal connected to specified channel in graph. |
*1: Temporary settings for ⑤Voltage Display and ⑥Graph Display. This setting is not applied to "Setting data collection conditions."
