Save Acquired Data

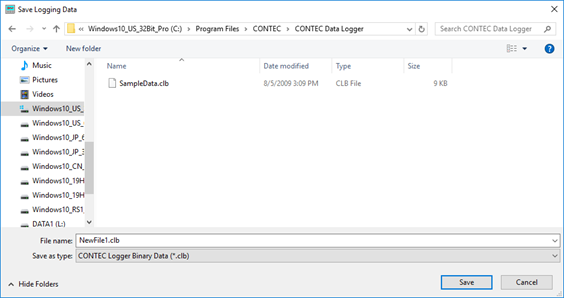

While acquired data is saved at first time, Save Logging Data dialogue is shown.

Select Binary form [CONTEC Logger Binary Data (*.clb)] or CSV form [CONTEC Logger Text Data (*.csv)] on file type.

You can indicate the file name and select Data form on "Save Logging Data" dialog.



Operation

Use the following commands to save as for Logging data.
You can indicate the file name on "Save Logging Data" dialog.

Status Bar

Description

Menu

[File]- [Save As...]

Tool Bar

(N/A)

Shortcut Key

[Ctrl] + [A]



Use the following commands to overwrite to the existing Logging data.
You have to indicate the file name when there is no existing file on your storage device.

Status Bar

Description

Menu

[File]-[Save]

Tool Bar

(It may be grayed out when there is no acquired data, yet.)

Shortcut Key

[Ctrl] + [S]



Appearance
