Show YT Windows for Plural Files


The following example assumes that two(2) C-LOGGER logging data are stored in local storage.
For details about how to save logging data to a file, see [Basic Operation] - [Save to File] topic.

Logging data name: CollectedData1.clb
Logging data name: CollectedData2.clb



1. In File Viewer, select the file whose YT Window is to be shown.

Here is a screen shot in which the contents of the "Acquired Data 1" file are graphed in "YT Window -1".



2. Select the other file in File Viewer.

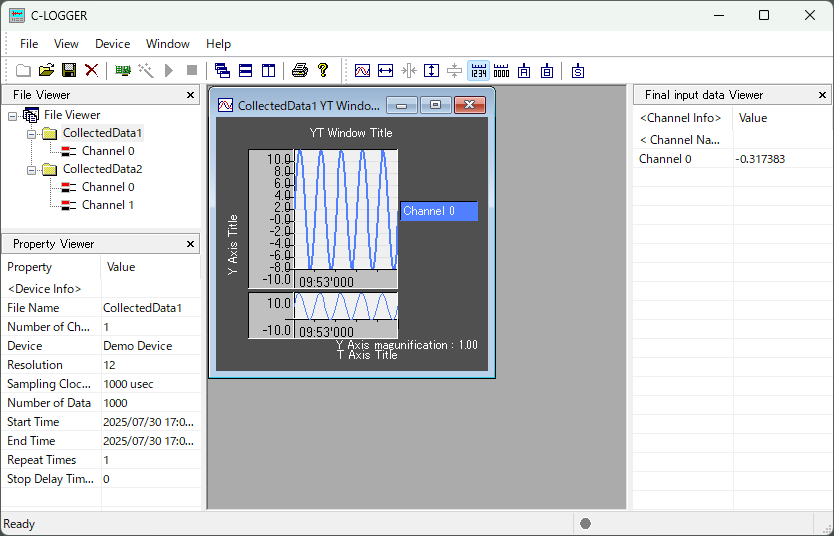

Here is a screen shot in which the contents of the "CollectedData1" file are graphed in "YT Window -1".



3. Select the other file in File Viewer.

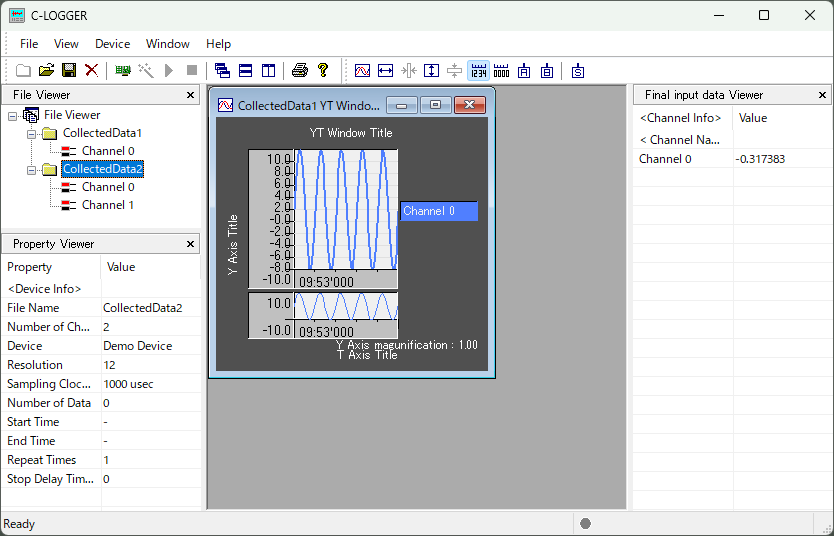

Here is a screen shot in which "CollectedData2" is selected while the graph is displayed in "YT window -1."



4.To start multiple YT windows, execute the YT-Window Execute command again.

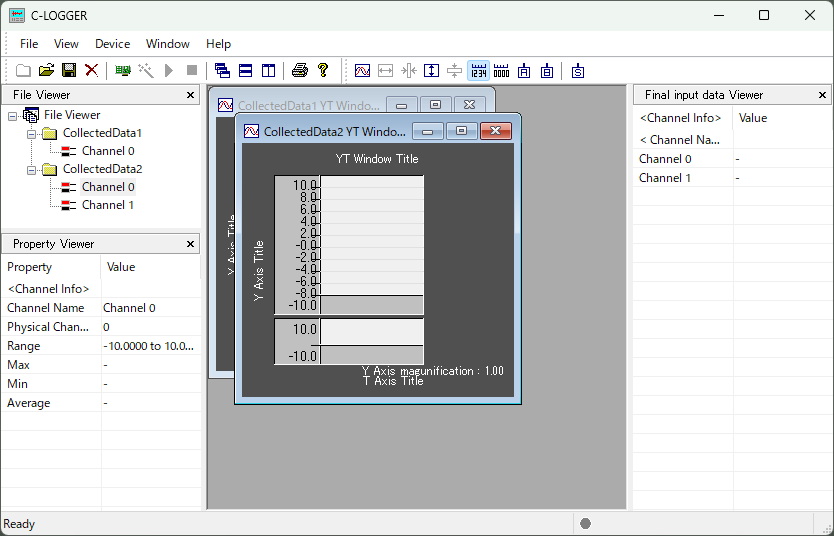

Here is a screen shot of "YT Window -1" with "CollectionData1" file.
And also, there is "YT Window -2" with "CollectionData2" file.
