Show YT Window for One File


The following example assumes that a single C-LOGGER logging data is stored in local storage.
For details about how to save logging data to a file, see [Basic Operation] - [Save to File] topic.

Logging data name: CollectedData1.clb



1. In File Viewer, select the file whose YT Window is to be shown.

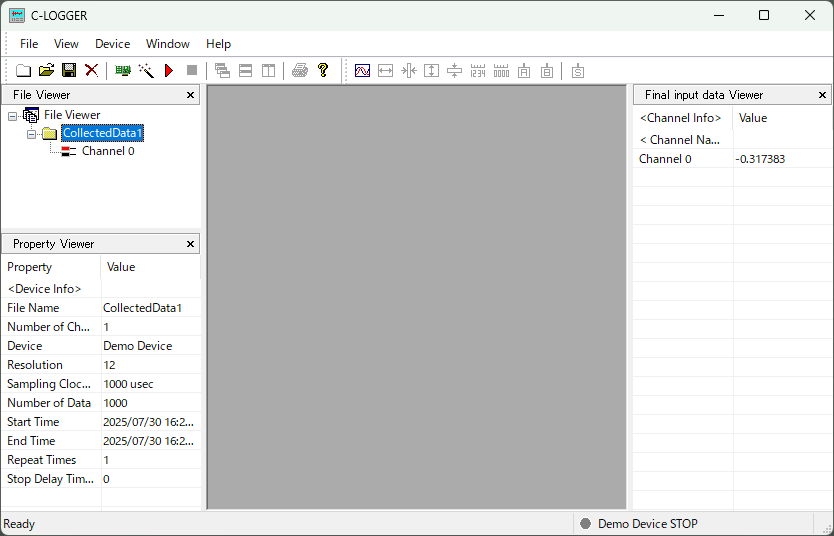

 Here is a screen shot when "CollectedData1.clb" is selected.



2. Execute command displays the YT-Wwindow.

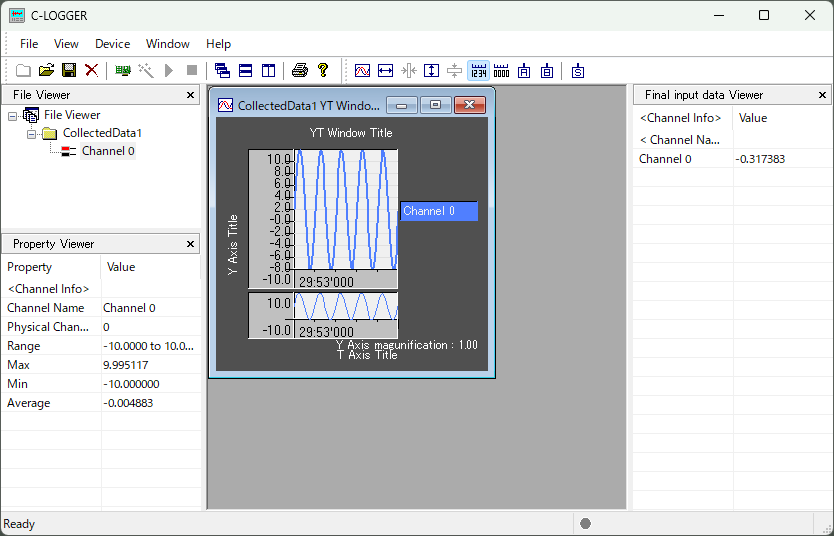

Here is a screen shot in which the contents of the "Acquired Data 1" file are graphed in "YT Window -1".



3.To start multiple YT windows, select the same file in the file viewer and execute the YT-Window Execute command again.

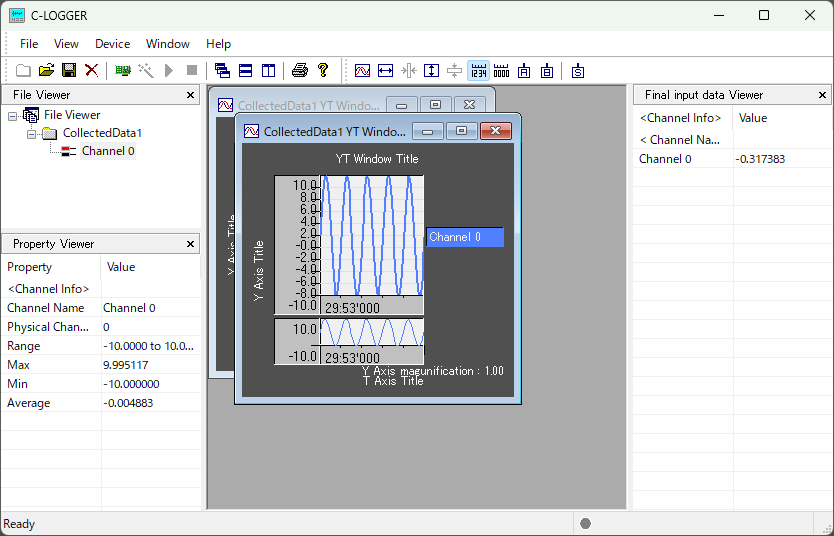

Here is a screen shot of "YT Window -1" and "YT Window -2" graphing the contents of the "CollectionData1" file.
