Display Absolute Time and Relative Time of YT Window


There are 2 ways can be selected to display T-axis (Time axis) of YT Window.

Absolute Time: Displays starting time as absolute time.
Relative Time: Displays starting time as 0.

When using an external clock as the sampling clock, the T-axis of the YT graph is the number of samplings, not time.



Operation

Switch display to Absolute Time by using following commands.

Status Bar

Description

Menu

[View]-[YT T-Axis Unit]-[Absolute Time]

Tool Bar

Shortcut Key

(N/A)



Switch display to Relative Time by using following commands.

Status Bar

Description

Menu

[View]-[YT T-Axis Unit]-[Relative Time]

Tool Bar

Shortcut Key

(N/A)



Appearance

Absolute time

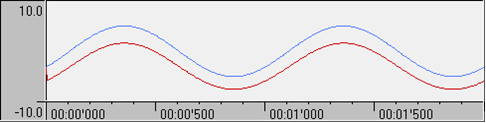

Relative Time

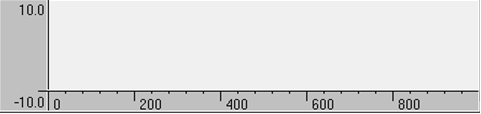

The axis scale displays the sampling times when you select External Clock.
