Status Bar

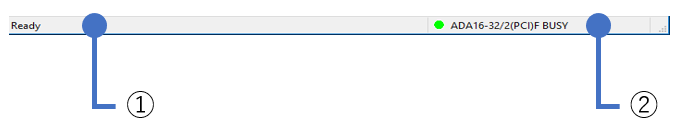

The status bar displays menu descriptions, device operating status, and so on.



①Shows description of menu item.

For the characters displayed when each menu is selected, please refer to the Menu Bar topic.

②Shows name and status of selected device.

The operating states of the device are as follows.

Characters displayed in the status bar

Operating state

Running

Collecting data from device

Stopped

Stopped C-LOGGER

Waiting for start trigger

Waiting for start trigger conditions to be met

Waiting for the rising edge (or falling edge) of an external trigger to occur.

It does not occur when the start trigger is specified as "Software".
