Start And Stop Data Acquisition


Select [Device]-[Start Logging] from menu bar to start acquisition.

During acquiring, the file icon in File Viewer changes to red and the circular icon in Status bar on right-bottom changes to green.
The acquired data of each channel is displayed as graph in YT Window.

Select [Device]-[Stop Logging] from menu bar to stop acquiring during acquisition.

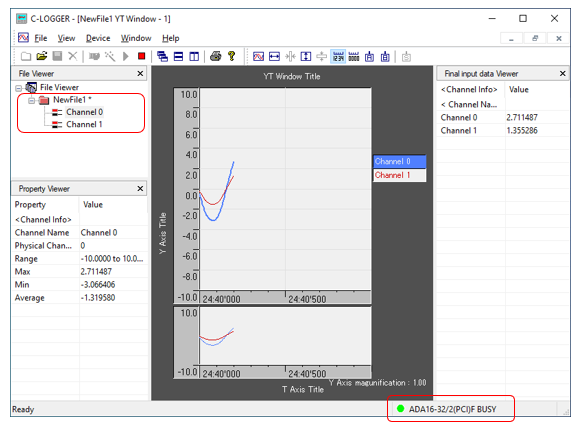

C-LOGGER Screen: During Acquiring
