Specify Data acquisition Conditions


Then, specify conditions of data acquisition.
The data acquisition conditions include conditions on device such as number of channels and conversion speed, and the conditions on software such as whether send data to Excel.

All of the settings of acquisition conditions are performed with a dialogue interface that named Logging Wizard.
Select [Device]-[Wizard] from menu bar to start Logging Wizard.

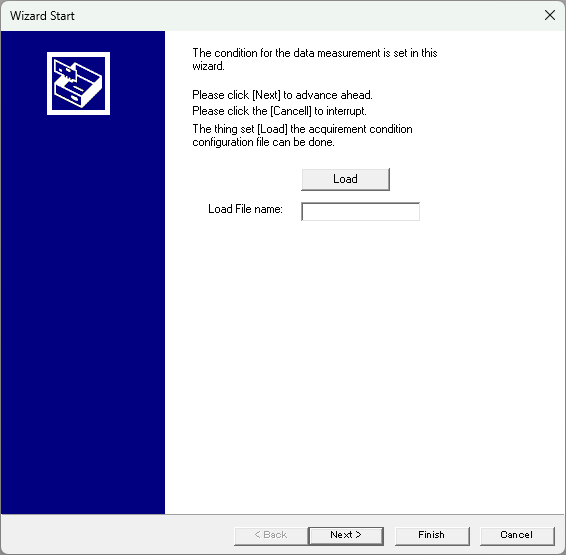

Logging Wizard: Start Screen



Although the acquisition conditions can also be loaded from a file, here we do not use it and go to the next.

Channel Setup screen is shown as follows.
In this page, perform Input Type and Sampling Channels Setup.

As the default value of wizard, SingleEnded and Channel0 are specified.
Add Channel1 by clicking Add button on the right of window.
Now, 2 channels, Channel0 and Channel1, will be acquired.

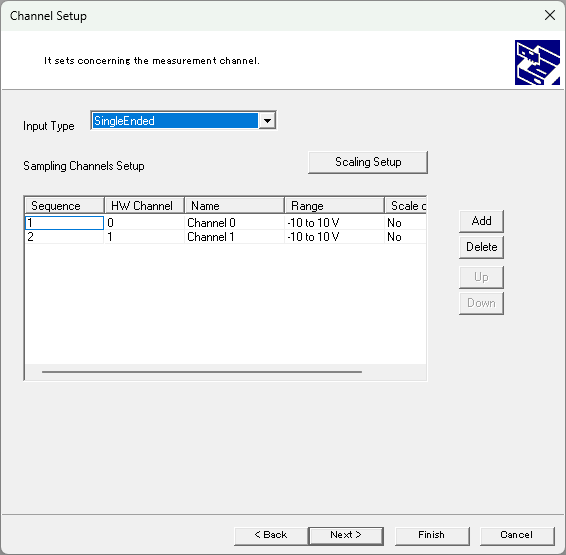

Logging Wizard: Channel Setup Screen



Click Next, Sampling Setup screen is shown.
Perform settings of Sampling Times and Sampling Clock Period.

Modify Sampling Times to 10000 against from the default value 1000.
The default value of Sampling Clock Period is 1 msec, so an acquisition of 10 seconds will be performed.

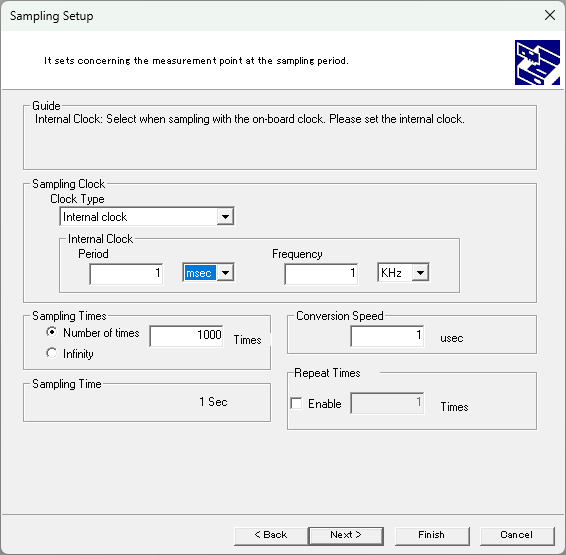

Logging Wizard: Sampling Setting Screen



Although there are other conditions settings in wizard, use all the remaining condition unchanged.
Click Finish button to exit Logging Wizard.
