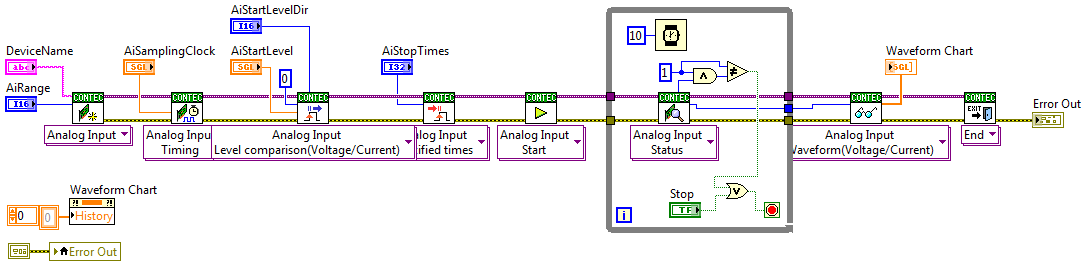

Sampling the voltage (or current) value input to Ch0 (the first input terminal) is performed.
When it is executed, it enters the trigger wait state, and sampling starts when the input signal reaches the specified level.
In the initial state, it is set to start when the signal rises or falls
to 0 (V or mA).

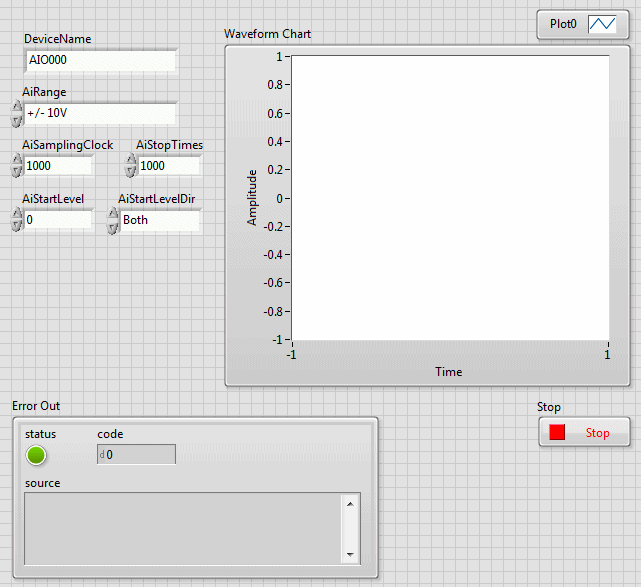

In the initial state, sampling is performed 1000 times at a cycle of 1
millisecond (1000uSec), and the result is displayed on the chart.
If you want to terminate before the level comparison condition is satisfied
or during sampling, please press the [Stop] button.
Since the initial state is
sampling of 1000 times with 1 millisecond cycle, signal change per second
is displayed on the chart.
If you want to set the input
method, you can add setting to [Channel setting].
