Line Setting Tab

Describe the Line Setting tab on the DncGraph Setting panel.

In the Line Setting tab, it is possible to set such as the number and color of lines displayed in the graph.

①No.

Indicate the line setting number. It can be registered up to 100 types (0 to 99).

②Line Name

Set the line name. This name is used when displaying legend.

③Line Type

Select the line type from the following.

・None

・Solid

・Dot

・Dash

・DashDot

・DashDotDot

④Line Color

Set the line color.

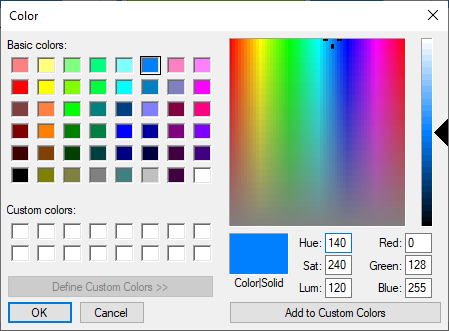

When you click on the line color part, the following color dialog is displayed.

⑤Line Width

Set the line thickness to 0-100.

⑥Line Marker

Select the type of marker displayed on the line from the following.

・None

・Circle

・Triangle

・Square

・Diamond

・Cross

⑦Marker Size

Set the marker size to 0-10.

⑧Select Y-axis

Select whether the Y-axis of the line is to use the first axis or the second axis.

⑨Line Display

Select Show/Hide the line.
