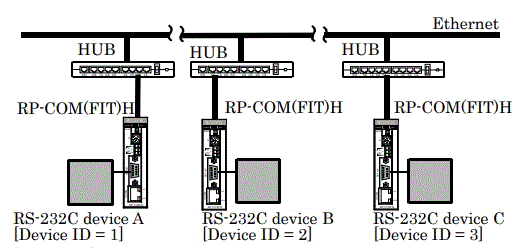

Configuring and cable wiring devices under Modem Mode is shown below.
- Connection PC to Media Converter with RS-232C/422 cable
- Connect three Media Converters to network through a HUB
- The general connection is composed of three Media Converters or more
- Media Converters are identified by device ID with each other
- Send and receive Modem Commands by using standard COM driver interface on PC to perform access
- Up to 128 (maximum value of device ID) ports (Media Converters) can be connected to LAN
