ORG Setting

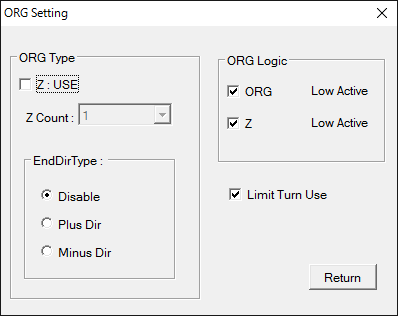

Appearance

Overview

The starting point resume operation is set by using Initialization function.
Please push [Return] button when the setting is completed. It returns to the Setting screen.

Use function

Initialization function( SmcWSetOrgMode SmcWSetOrgLog )

Step to Use

ORG Type. SmcWSetOrgMode function

Z USE

Z Count (Range 1-16 of setting)

EndDirType (The direction where it is rushed into that the starting point returns the starting point is set. )

Disable (doesn't specify it)
Plus Dir (Positive direction)
Minus Dir (Negative direction)

ORG Logic. SmcWSetOrgLog function

Positive logic/negative-true logic of the ORG signal is set.
Positive logic/Rising edge-Falling edge logic of Z signal is set.

LimitTurn Use. SmcWSetOrgMode function

The limit doesn't reverse.
The limit reverses.
