ERC/ALM Clear Setting

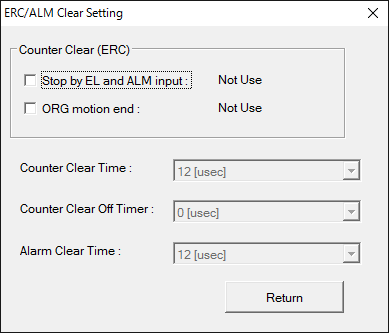

Appearance

Overview

The width etc. of a clear signal are set by using Initialization function.
Please push [Return] button when the setting is completed. It returns to the Setting screen.

Use function

 Initialization function ( SmcWSetErcAlmClearTime SmcWSetErcMode )

Step to Use

Counter Clear(ERC)

Stop by LIM and ALM input

0 : When stopping by LIM and the ALM signal input, the ERC signal is not output.
1 : When stopping by LIM and the ALM signal input, the ERC signal is output.

ORG motion end

0: When the starting point resume operation is completed, the ERC signal is not output.
1: When the starting point resume operation is completed, the ERC signal is output.

Counter Clear Time (The width of Deviation Counter Clear signal is set. )

12[µsec]
102[µsec]
408[µsec]
1.6[msec]
13[msec]
52[msec]
104[msec]
Level output

Counter Off Timer (The time of Deviation Counter Clear signal OFF timer is set. )

0[µsec]
12[µsec]
1.6[msec]
104[msec]

Alarm Clear Time (The width of Alarm Clear signal is set. )

12[µsec]
102[µsec]
408[µsec]
1.6[msec]
13[msec]
52[msec]
104[msec]
