The device name of this device cannot be changed using the CONTEC Device Utility.
Please start up the device manager and change it from the property display of the target device.
1. Disconnect the USB cable once, set the ID switch to "0".
2. After USB connecting your PC and this device, start the CONTEC Device Utility.
3. When this device is detected with the ID "0", the product name is displayed in the "USB" tree.
If the product name is not displayed, please refer to the topic "The device name of DIO-USB-TYPE2 is displayed".
4. When selecting a device, "Current version" shows the current firmware version.
5. When clicking "Write new firmware", a file selection dialog is displayed.
Please select the firmware file to be written.
After writing, the target device automatically restarts and the new firmware will be applied.
Firmware update itself has been completed so far.
6. Please detect the device again and confirm that the version of "Current version" has been updated.
If "Current version" is "0.00", the firmware update may have failed.

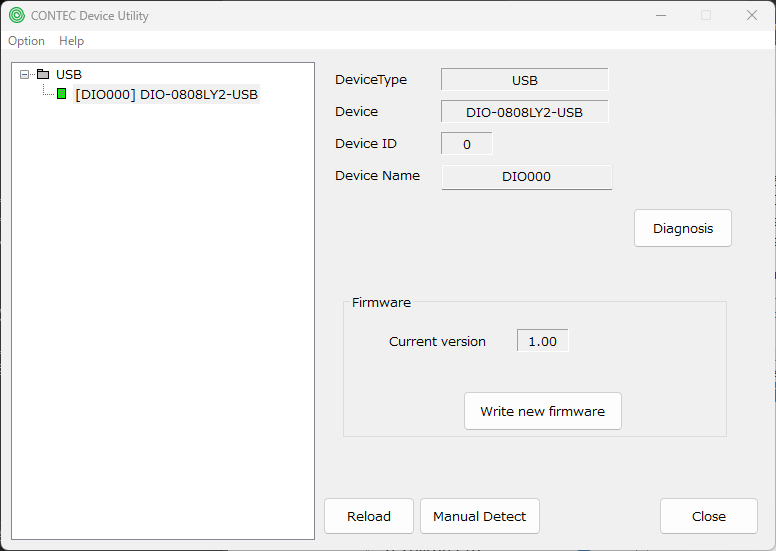

＜Example of connecting DIO-0808LY2-USB＞
