Device Name Setting

1. You have to configure the network setting (Device Setting) for CAN-2-WF in advance.
  Please refer the reference manual for CAN-2-WF to know the way to configure.

2. After Wi-Fi connecting your PC and this device, start the CONTEC Device Utility.

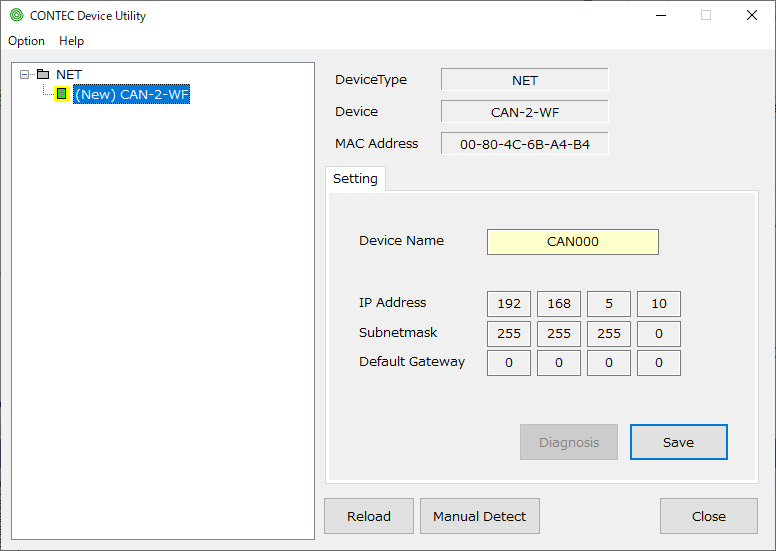

3. When this device is newly detected, "(New) CAN-2-WF" will be displayed in the "NET" tree, and the temporary device name is displayed in the light yellow on "Device Name" item.

4. Please click the "Save" button after you define "Device Name".
   The setting itself has been completed so far.

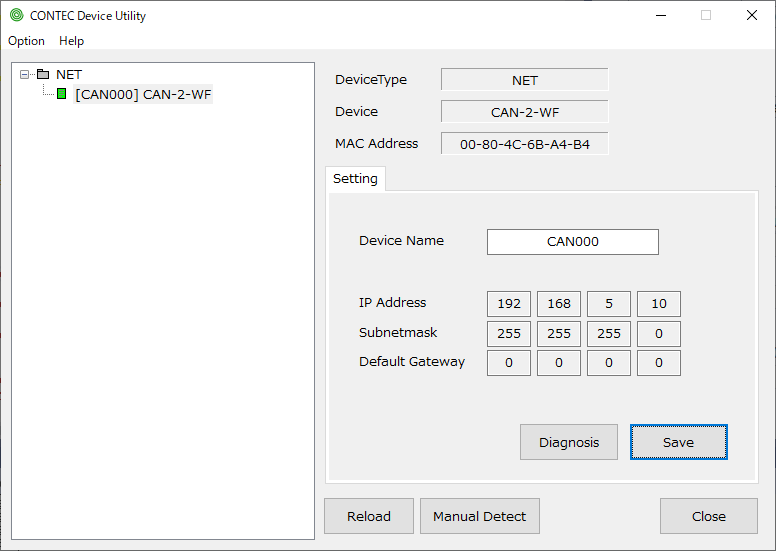

5. The configured device is indicated as "[device name] CAN-2-WF", and the device name is displayed in the white on "Device Name" item.

6. If you select this configured device, the "Diagnosis" button will be enabled.
   Clicking this button will start Diagnostic program and check the operation.

7. If you want to change the setting contents, please click "Save" again after changing.




Firmware Update

CONTEC Device Utility cannot update the firmware for this device.

Firmware update is performed with the web browser.
For details, please refer to the CAN-2-WF Manual.
