Device Name Setting/Network Setting

1. After LAN connecting your PC and this device, start the CONTEC Device Utility.

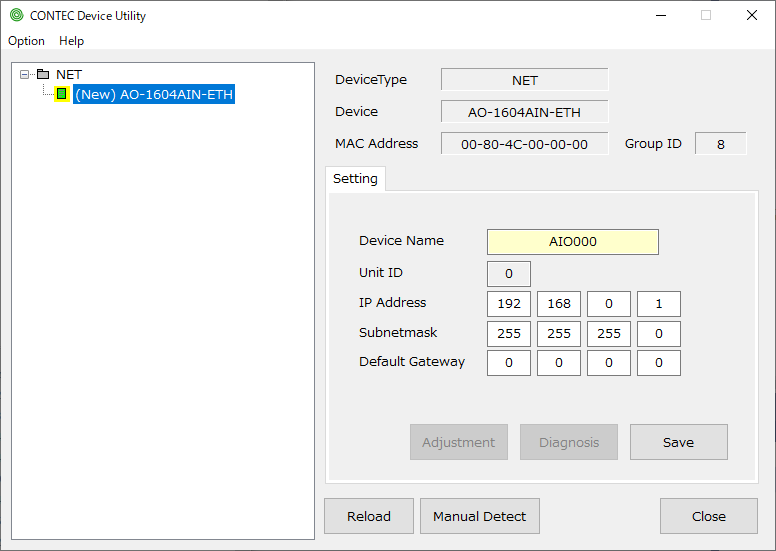

2. When this device is newly detected, "(New) AO-1604AIN-ETH" will be displayed in the "NET" tree, and the temporary device name is displayed in the light yellow "Device Name".

3. Set the following "Setting item" and click the "Save" button.
   The target device will automatically reboot and the settings will be applied.
   The setting itself has been completed so far.

4. The configured device is indicated as "[device name] AO-1604AIN-ETH", and the device name is displayed in the white "Device Name".

5. If you select this configured device, the "Adjustment" button will be enabled.
  Clicking this button will start Adjustment program and you can adjust the device with the gain and the offset parameters.
  Please refer "Home > Analog Input and Output Driver > Utility > Adjustment Program" to know more details.

6. If you select this configured device, the "Diagnosis" button will be enabled.
   Clicking this button will start Diagnostic program and check the operation.
   Please refer "Home > Analog Input and Output Driver > Utility > Diagnosis Program" to know more details.

7. If you want to change the setting contents, please click "Save" again after changing.



[Device information area] Display information of the selected device

Device Type

Display device type

Device

Display product model

MAC Address

Display MAC address

Group ID

Display group ID setting value



[Setting item] You can set the selected device

Device Name

Set the device name.

It cannot have the same name as any other device.

When specifying a device from an application, specify this device name.

Unit ID

Set unit ID.*1

When using this product multiple units, it is necessary to set the unit ID uniquely.

  Settable range: 0 to 127  (Rotary switch settable range is 0 to 7)

IP Address

Set IP address.*2

Subnetmask

Set the subnet mask.*2

Default Gateway

Set the default gateway.*2
When setting is unnecessary, set 0.0.0.0.

*1 When the Group ID is 8, the unit ID depends on the setting of the unit rotary switch and cannot be changed by the utility.
  If Group ID is A, set the unit ID here.

*2 Please make appropriate settings for these settings according to your network environment.




Firmware Update

1. Turn off the power of this device and set the Group ID to "E".

2. After LAN connecting your PC and this device, start the CONTEC Device Utility.

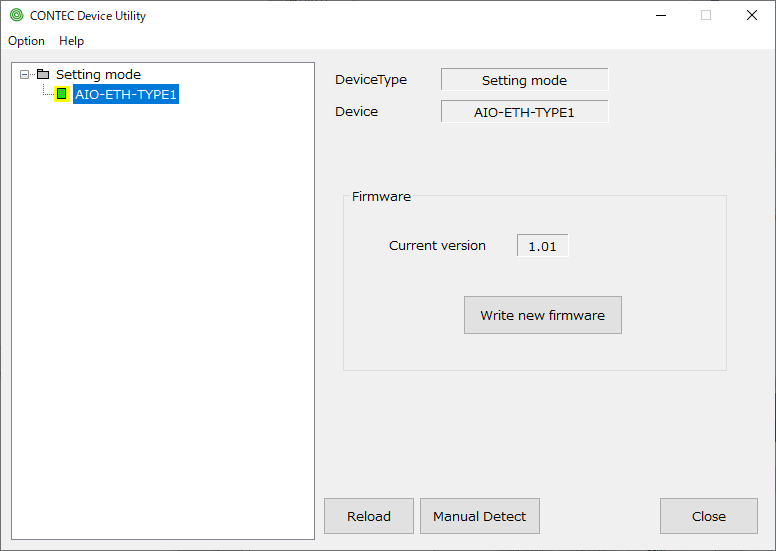

3. When this device is detected with Group ID "E", "AIO-ETH-TYPE1" is displayed in the "Setting mode" tree.

4. When selecting a device, "Current version" shows the current firmware version.

5. When clicking "Write new firmware", a file selection dialog is displayed.
   Please select the firmware file to be written.

   After writing, the target device automatically restarts and the new firmware will be applied.
   Firmware update itself has been completed so far.

6. Re-launching the utility will redetect the device.
   Please confirm that the version of "Current version" has been updated.



* For AO-1604AIN-ETH, when setting Group ID to "E", the IP address of this device will be fixed at "192.168.0.1", so consider this when using it through a router.
* When updating more than one device, please operate one by one.
