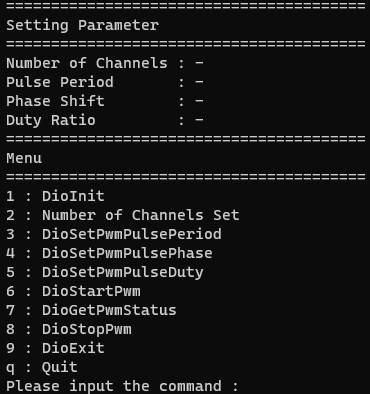

This is a sample that performs PWM output settings, start/stop of output, and status acquisition.
In the state of command-input-wait, input 'q' to exit the program.
|
Sample Specification |
|
|
Program Name |
pwm_output |
|
Pulse Period |
0ch: 100[msec], 1ch: 200[msec], 2ch: 300[msec], 3ch: 400[msec] |
|
Duty Ratio |
0ch: 50[%], 1ch: 50[%], 2ch: 50[%], 3ch: 50[%] |
|
Phase Shift |
0ch: 0, 1ch: 0, 2ch: 0, 3ch: 0 |
py pwm_output.py
