AioSetDiFilter

Function

Sets the filter for digital input signal.

Format

Ret = AioSetDiFilter ( Id , Bit , Value )

Parameters

Id [ VB.NET : Short ] [ C, C++ : short ] [ C# : short ] [ Python : ctypes.c_short ]
Specifies the device ID retrieved from AioInit.

Bit [ VB.NET : Short ] [ C, C++ : short ] [ C# : short ] [ Python : ctypes.c_short ]
Specifies the input bit for setting filter.
Only -1 can be set now.

Input bit	Value
Input bit 0 (Reserved)	0
Input bit 1 (Reserved)	1
Input bit 2 (Reserved)	2
Input bit 3 (Reserved)	3
All signals above	-1

Value [ VB.NET : Single ] [ C, C++ : float ] [ C# : float ] [ Python : ctypes.c_float ]
Sets the filter time. The unit is usec.
0 means no filter.

Return value

Ret [ VB.NET : Integer ] [ C, C++ : long ] [ C# : int ] [ Python : ctypes.c_long ]

Return values	Content
0	Normality completion
7	Execute AioResetDevice function because the device has recovered from standby mode
10001	Invalid Id was specified Use the Id retrieved from AioInit to specify the Id in this function.
10002	AIO driver can't be called At first, perform AioInit function.
14040	The value of Bit is outside the designated range of the function
14041	The value of Value is outside the designated range of the function
20001	This function can't be used by this device
20003	Can not use because another process is using the device
24040	The value of Bit is outside the designated range of the device being used
24041	The value of Value is outside the designated range of the device being used

Initial value

For all signal lines, filter is disabled

Remarks

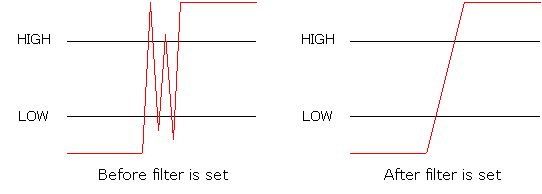

If the filter is set, the high frequency component (noise, chattering and so on) can be removed.

The larger the value of filter time setting is, the better the noise and chattering can be avoided. But the delay time of switching between ON and OFF will become longer.

This function cannot be used on devices without digital input functionality.
If the device is in operation, the function cannot be performed.

Specifications based on devices

AI-1204Z-PE AI-1204Z-PCI	Usable Value is 0, 0.05, 1, 10, 100.
AI-1664UG-PE AIO-163202G-PE AIO-163202UG-PE AIO-123202G-PE AIO-123202UG-PE	Usable Value is 0, 0.125, 0.25, 0.5, 1.0, 2.0, 4.0, 8.0, 16.0, 32.0, 64.0, 128.0, 256.0, 512.0, 1024.0, 2048.0, 4096.0, 8192.0, 16000.0. The digital input signal is sampled at each filter time, and when 4 consecutive High (or Low) are detected, it is notified to the input circuit. Therefore, the signal is delayed by 4 times the set filter time.
AIO-163202F-PE ADA16-32/2(PCI)F	Usable Value is 0, 1, 128, 16000.
AIO-160802L-LPE ADA16-8/2(LPCI)L ADAI16-8/2(LPCI)L AIO-160802LI-PE	Usable Value is 0 or 1.
AI-1616L-LPE AD16-64(LPCI)LA AD16-16(LPCI)L ADI16-16(LPCI)L AI-1616LI-PE AI-1664LA-LPE	Usable Value is 0 or 1.
AO-1604L-LPE DA16-16(LPCI)L DA16-8(LPCI)L DA16-4(LPCI)L DAI16-4(LPCI)L AO-1604LI-PE AO-1608L-LPE AO-1616L-LPE AI-1608AY-USB AIO-160802AY-USB AI-1608GY-USB AIO-160802GY-USB AO-1604LX-USB	Usable Value is 0 or 1.
AIO-163202FX-USB	Usable Value is 0, 1, 128, 16000.
AIO-121602LN-USB AIO-120802LN-USB	Usable Value is 0, 1, 128, 16000.
AI-1608VIN-USB AI-1608AIN-USB AI-1608VIN-ETH AI-1608AIN-ETH AO-1604VIN-USB AO-1604AIN-USB AO-1604VIN-ETH AO-1604AIN-ETH	Usable Value is 0 or 1.
AI-1664LAX-USB	Usable Value is 0 or 1.

Example

Sets 1usec to the filter of all bits.

VB.NET	Dim Ret As Integer Ret = AioSetDiFilter ( Id , -1 , 1.0 )
C, C++	long Ret; Ret = AioSetDiFilter ( Id , -1 , 1.0 );
C#	int Ret; Ret = aio.SetDiFilter ( Id , -1 , 1.0F );
Python	Ret = ctypes.c_long() Ret.value = caio.AioSetDiFilter ( Id , -1 , 1.0 )
