[s]:Save settings

Save the settings configured with the setup tool.

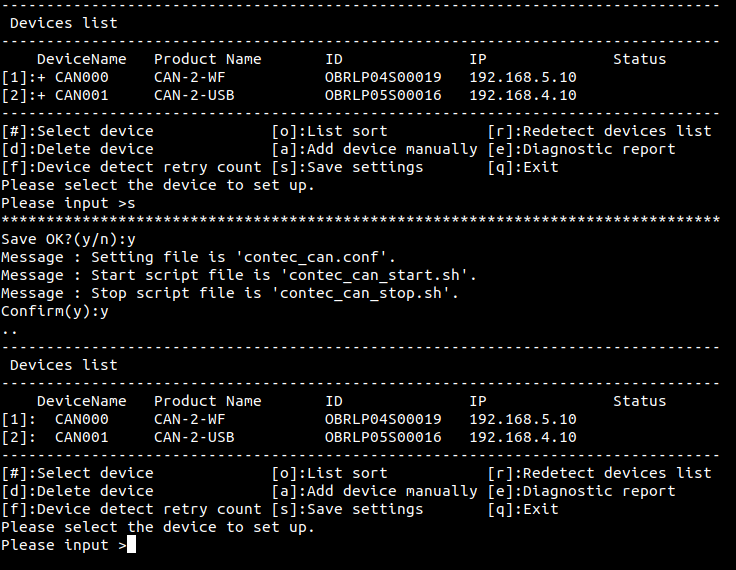

The following is an operation example when saving.



When you save it, configuration file (contec_can.conf) will be created according to the settings you made in the setup tool.

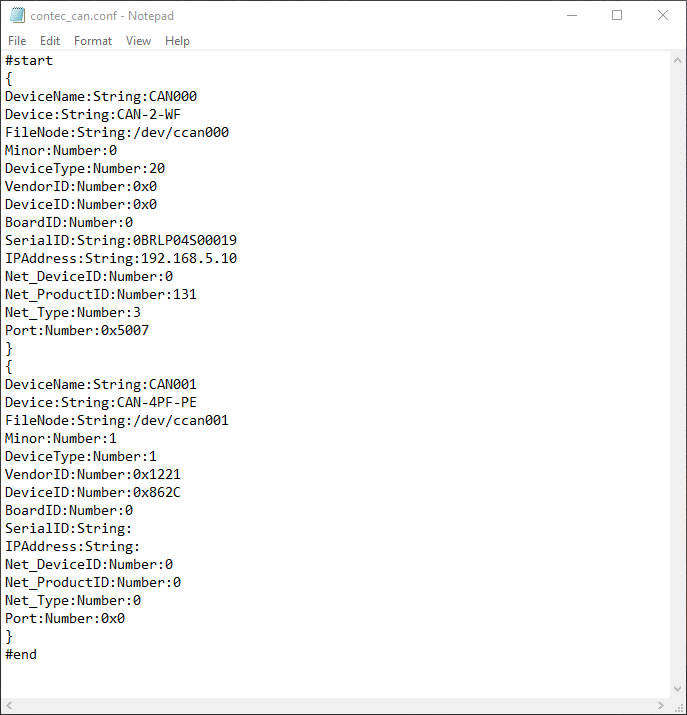

Below is an example of the configuration file that is created.

[contec_can.conf] Example
