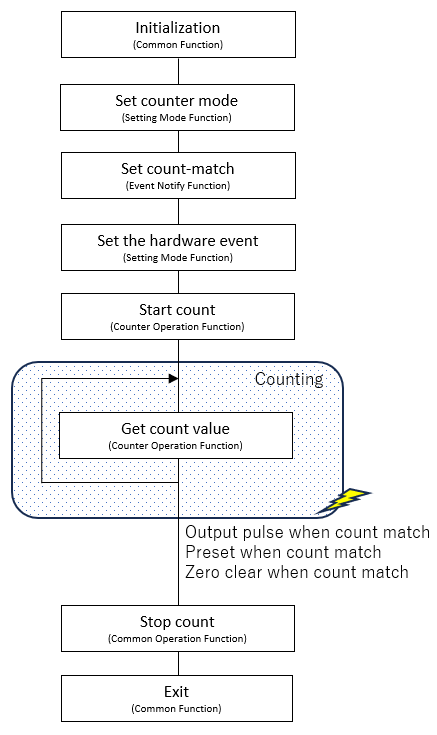

The processing procedure in Output Pulse at count match is showed as the following flow chart.
You can see the detail of each function when you click on the blocks
on the flowchart.
Please refer to Function Reference
for details of used functions.
