Explanation
DA converts the plural channels one time.

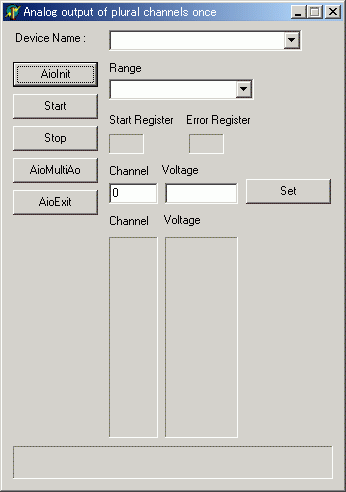

Usage
1. Select the device name set by F&eIT utility from the combobox at the upper left.
2. Click the button "AioInit". The result of initialization is displayed.
Using function: AioInit AioGetAoMaxChannels
3. When the initialization completed, the usable channels are displayed at the center of the dialog. In the example of the graph, 0 to 15 total 16 channels can be used.
4. Select the analog output range of device from combobox. Depending on devices, the setting may be not effective if JP is not changed.
Using function: AioSetAoRangeAll
5. When "Start Register" is 0, click the button "Start".
Using function: AioStartIO
6. Output data is set, when analog output channel and voltage data are inputted to the combobox at the center and the button "Set" is clicked.
7. When click the button "AioMultiAo", perform the output of all channels. If the function normally completed, the converted data is displayed in decimal.
Using function: AioMultiAoEx
8. Click the button "AioExit", termination is performed.
Using function: AioExit
Other Using Function
